Liquid Filler Packing Machine for Accurate & Hygienic Liquid Packaging

Looking for a Liquid Filler Packing Machine that delivers accuracy, hygiene, and speed? At Arceus India, we manufacture automatic and semi-automatic liquid filler machines designed for a wide range of liquid and semi-liquid products—from water, milk, and sauces to hand sanitizers, lubricants, and adhesives.

Our Liquid Filler Packing Machines are built with servo or piston-based volumetric systems that ensure precise dosing, leak-proof sealing, and consistent output. Whether you’re a food manufacturer, pharmaceutical company, or chemical producer, our machines streamline your filling process with hygienic design and long-lasting performance.

Types of Liquid Filler Packing Machines

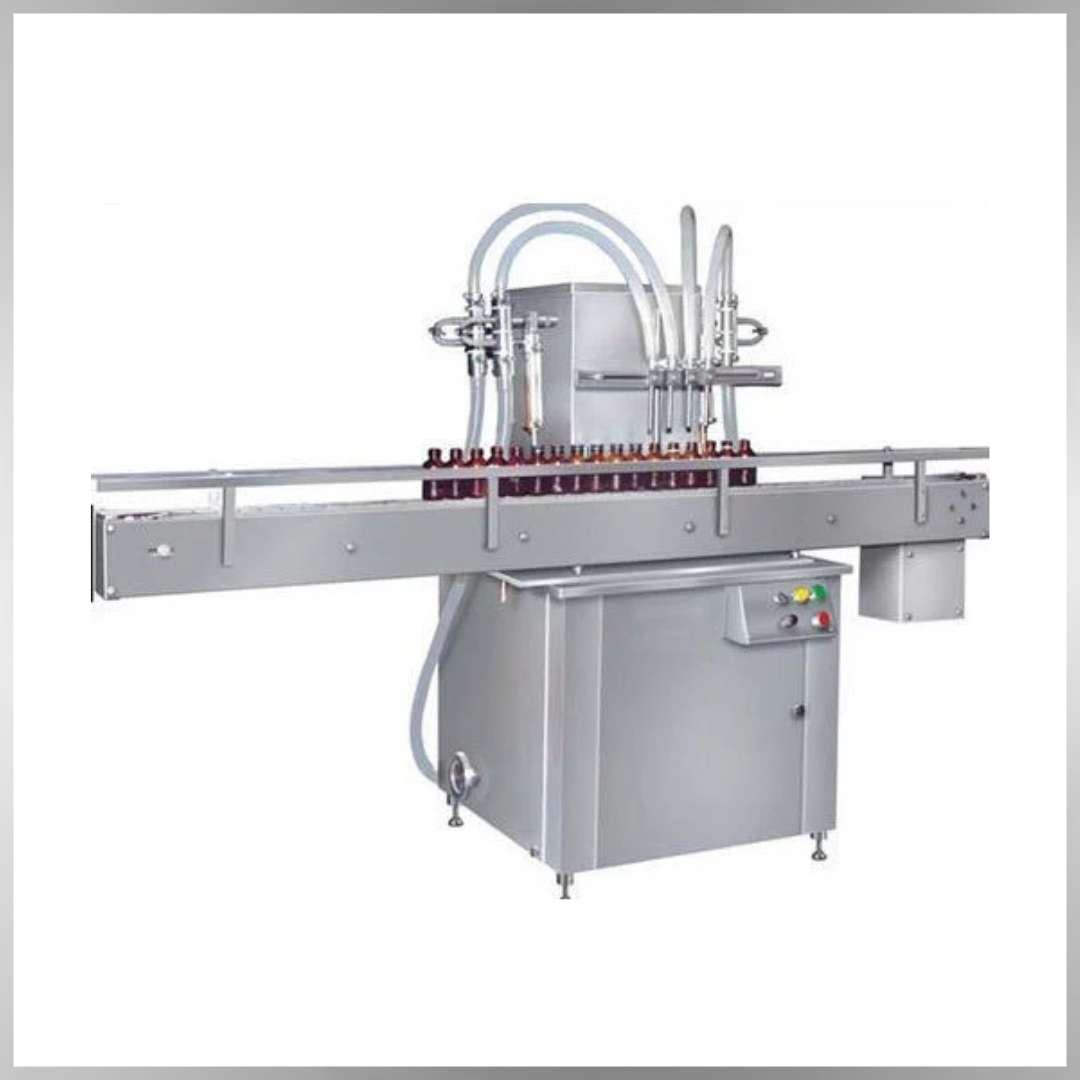

Former Type – Automatic Liquid Filler Packing Machine

The Former Type Liquid Filler Machine is a fully automatic packaging solution designed for precise filling and sealing of liquids and semi-liquids. Equipped with advanced volumetric or piston-based filling systems, it guarantees high accuracy, leak-proof pouches, and consistent performance.

Highlights:

• Forms pouches directly from film rolls for continuous operation
• Leak-proof sealing system for liquids of all viscosities
• Hygienic stainless-steel construction (SS304 contact parts)
• Compact, low-maintenance design
• Ideal for small to mid-level production

Common Applications:

Water, Milk, Juices, Soft Drinks, Edible Oils, Sauces, Ketchups, Honey, Syrups, Vinegar, Liquid Flavorings, Tonics, Cough Syrups, and Disinfectants.

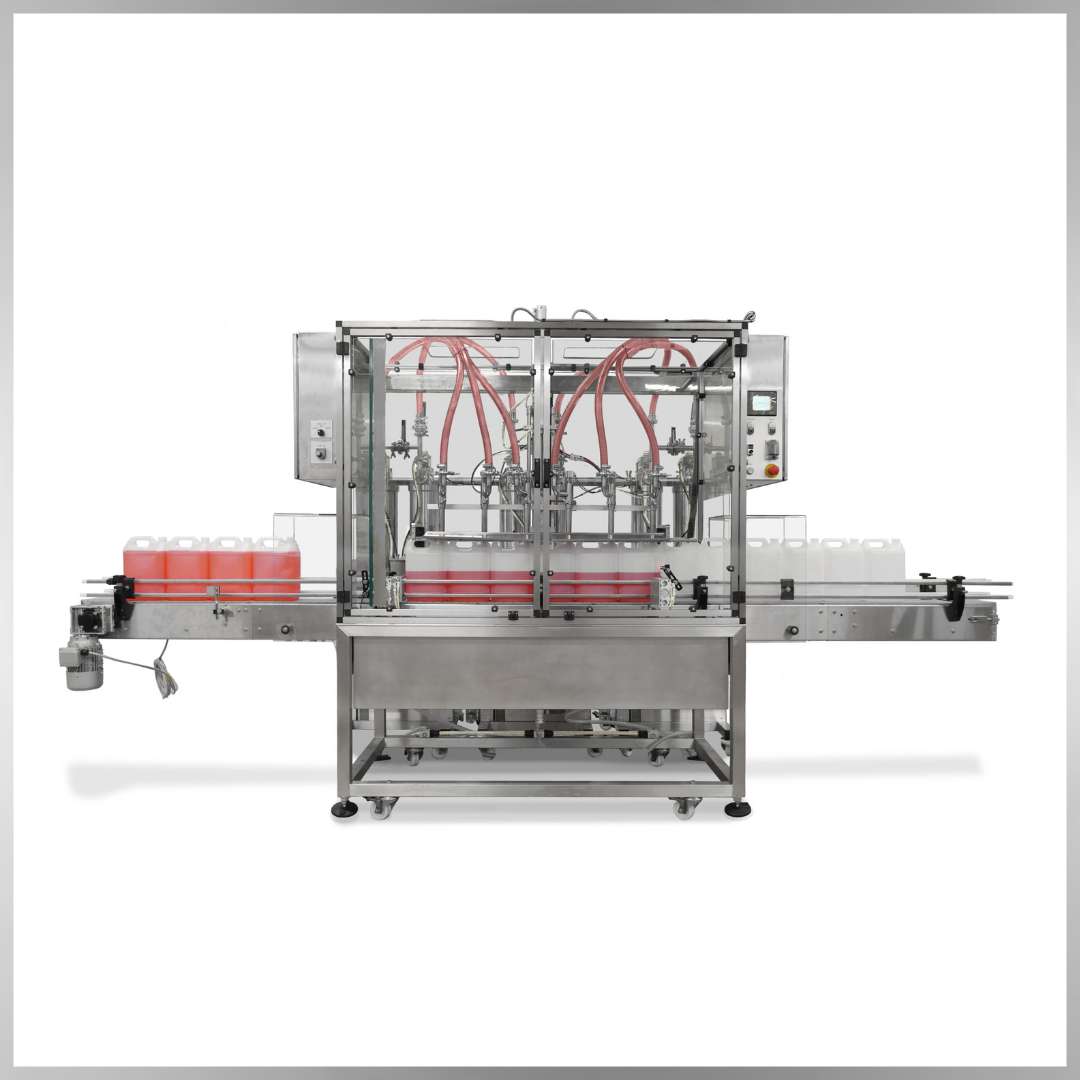

Collar Type – High-Speed Liquid Filler Packing Machine

The Collar Type Liquid Filler Machine is a high-performance automatic packaging system ideal for large-scale production. It converts roll film into perfectly shaped pouches, fills them with accurate liquid volumes, seals, and cuts them — all in a single automated sequence.

Highlights:

• Servo-driven piston filling system for superior accuracy
• Advanced collar-forming mechanism for stable pouch shapes
• Pneumatic sealing jaws for airtight sealing
• Supports pillow, center-seal, and gusseted pouches
• Designed for 24x7 industrial use with minimal downtime

Common Applications:

Shampoos, Conditioners, Lotions, Creams, Liquid Soaps, Gels, Perfumes, Lubricants, Paints, Cleaning Solutions, Pesticides, Adhesives, Chemicals, and Inks.

Technical Specifications

Parameter	Specification
Filling Range	50 ml – 1000 ml (extendable up to 5 liters)
Output Speed	30–70 pouches/min (based on viscosity & size)
Film Type	Heat-sealable laminated films (PET/PE, BOPP, Foil)
Pouch Formats	Pillow, Gusseted, Center-Seal
Filling System	Servo-driven piston/volumetric pump
Construction	SS304 Contact Parts, SS202/MS Frame
Power Supply	3 Phase, 415 VAC, 50 Hz
Air Requirement	2 HP, 6–8 Bar
Dimensions	1.2 m (W) × 2.3 m (H) × 1.6 m (L)
Weight	600–750 kg

Industries & Applications of Liquid Filler Machines

Industry	Description	Suitable Products
Food & Beverages	Ideal for liquids that require clean, airtight sealing.	Water, Milk, Juices, Soft Drinks, Edible Oils, Sauces, Ketchups, Honey, Syrups, Vinegar
Pharmaceuticals & Healthcare	Designed for sterile and precise packaging of medical liquids.	Cough Syrups, Tonics, Oral Solutions, Suspensions, Disinfectants, Hand Sanitizers
Cosmetics & Personal Care	Perfect for viscous, cream-based, or gel-like products.	Shampoos, Conditioners, Lotions, Creams, Liquid Soaps, Perfumes
Industrial & Chemical	Built for heavy-duty and high-viscosity materials.	Lubricants, Paints, Pesticides, Adhesives, Cleaning Solutions, Chemicals, Inks

How It Works – Step-by-Step Process

• Feeding: Liquid is poured into the stainless-steel hopper.
• Measuring: The servo or piston system dispenses exact quantities.
• Forming: Film roll forms a pouch via former or collar-type mechanism.
• Filling: The liquid is filled precisely into the formed pouch.
• Sealing & Cutting: The pouch is heat-sealed and cut automatically.
• Output: Finished packs are discharged onto the conveyor, ready for dispatch.

This automation reduces manpower, improves output consistency, and eliminates spillage.

Why Choose Arceus India’s Liquid Filler Packing Machine

• High Accuracy: Servo-based dosing for consistent fill volumes
• Hygienic & Durable: SS304 construction ensures product safety
• Customizable Range: Single, double, or multi-head configurations
• Low Maintenance: Minimal wear parts and easy-to-clean design
• Energy Efficient: Optimized power usage for long production runs
• After-Sales Support: Installation, training, and maintenance included

Troubleshooting, Safety & Maintenance

• Equipped with emergency stop switch and overload protection
• Easy component access for cleaning and repairs
• Automatic error detection system for continuous monitoring
• Operator-friendly control panel with touchscreen interface
• Spare parts and technical support available nationwide

Liquid Filler Packing Machine Price in India

The price of a Liquid Filler Packing Machine in India depends on the automation level, capacity, and customization required. Arceus India provides factory-direct pricing and ensures the best ROI with durable machines that last for years.

FAQs – Liquid Filler Packing Machine

1. What is a Liquid Filler Packing Machine used for?
It’s used to accurately fill and seal liquid or semi-liquid products like water, milk, oil, sauces, syrups, shampoos, and sanitizers into pouches or bottles.

2. What’s the price of a Liquid Filler Packing Machine in India?
Prices vary depending on speed, head configuration, and automation type. Contact Arceus India for a custom quote.

3. Is this machine suitable for both food and chemical liquids?
Yes. Each unit is built with food-grade stainless steel and is compatible with both edible and industrial liquids.

4. Can I get a small or automatic model?
Yes, we offer small liquid filler packing machines as well as fully automatic liquid pouch packing systems based on your production volume.

5. Do you provide installation and after-sales service?
Absolutely. We offer on-site installation, operator training, and long-term maintenance support for all our machines.
